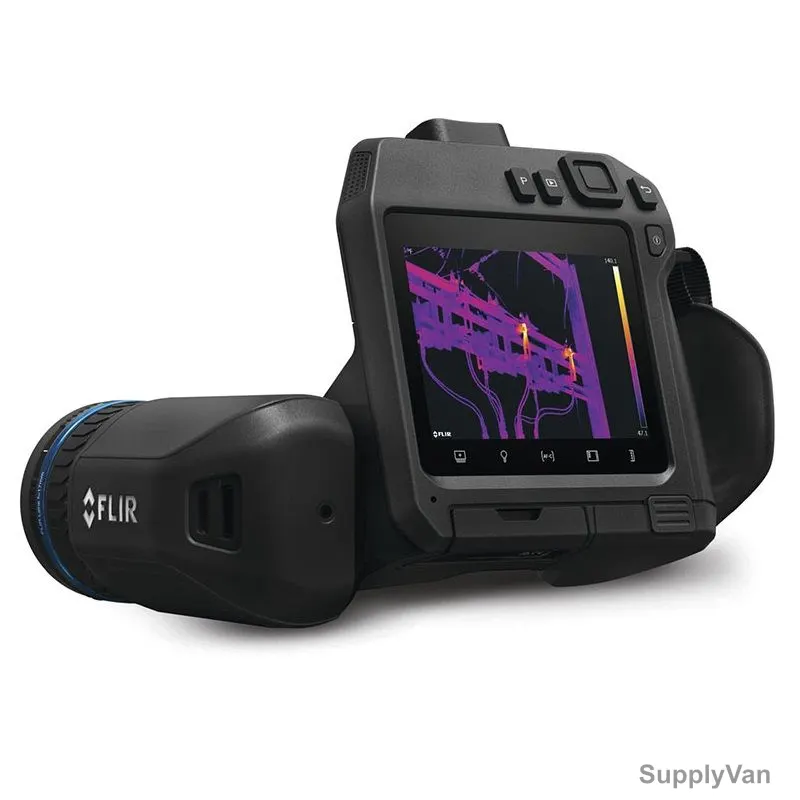

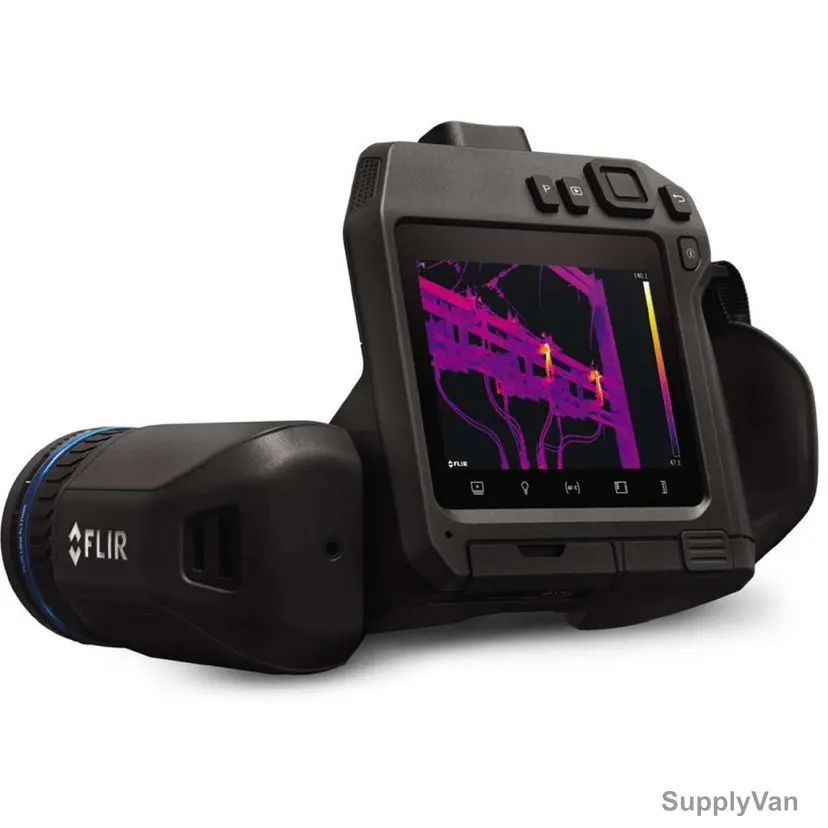

Flir Thermal Imaging Camera, T840, 464 x 348p, -20 to 1500 Deg.C
Key features
- Scan outdoor equipment from a safe distance using the integrated eyepiece viewfinder
- Reduce the strain of full-day inspections with the 180° rotating optical block
- Share lenses across your fleet of cameras thanks to Auto Cal optics
- Ensure crisp thermal imagery and spot-on temperature readings every time with laser assisted autofocus
- Get industry-leading image clarity from FLIR Vision Processing, MSX, UltraMax, and proprietary adaptive filtering
- Determine accessibility of components for repair at the touch of a button by activating on-screen laser distance measurement
Specifications
| SV Code | 827694191472 |
| Brand | Flir |
| Category | Thermal Imager |
| Unit | Piece |
| Temperature Range | -20 to 1500 Deg.C |
| Spectral Range | 7.5-14.0 micron |
| Display Size | 4 Inch |
| Colour | Black |
| Operating Temperature | -15 to 50 Deg.C |
| Storage Temperature | -40 to 70 Deg.C |
| Resolution | 5MP |
| Display Resolution | 640 x 480p |
| Pitch | 17 µm |
| Frame Rate | 30 Hz |
| Maximum Aperture | F/1.3 |
| Minimum Focus Distance | 0.15 Mtr |
| Digital Zoom | 1 to 6x Continuous |
| Detector Resolution | 464 x 348p (161,472p) |
| Detector Type | Uncooled Microbolometer |
| Brand Origin (not manufacture) | United States |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The T840 infrared (IR) camera is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4" color LCD display, it makes it easy to conduct inspections outside in bright, challenging lighting conditions. The 180° rotating lens platform and thoughtful ergonomic design allow it to help users diagnose hard-to-reach components in a variety of environments. With advanced on-camera measurement tools such as 1-Touch Level/Span and laser-assisted autofocus, you'll record accurate temperature measurements every time. Avoid costly power outages and plant shutdowns through regular predictive maintenance routines with this flexible and innovative IR camera.
Features
- Scan outdoor equipment from a safe distance using the integrated eyepiece viewfinder
- Reduce the strain of full-day inspections with the 180° rotating optical block
- Share lenses across your fleet of cameras thanks to Auto Cal optics
- Ensure crisp thermal imagery and spot-on temperature readings every time with laser assisted autofocus
- Get industry-leading image clarity from FLIR Vision Processing, MSX, UltraMax, and proprietary adaptive filtering
- Determine accessibility of components for repair at the touch of a button by activating on-screen laser distance measurement
- See problems and make decisions easily thanks to a scratch-resistant, 4 Inch LCD display that's 33% brighter and 4x the resolution of comparable cameras
- Quickly access menus, folders, and settings using intuitive controls, including rapid response touchscreen
- Allow customers to observe critical findings in real time through Wi-Fi streaming to the FLIR Tools app
- Prepare precise documentation with embedded GPS locations, as well as measurement data from METER Link-enabled FLIR clamps and multimeters
- UltraMax Quadruples pixel count; activated in menu and processed in FLIR Tools; Resolution: 645,888 effective pixels
- Lens Identification: Automatic
- Macro Mode: 71 µm effective spot size
- Focus Continuous with laser distance meter (LDM), oneshot LDM, one-shot contrast, manual
- Color Palettes: Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC; Image Modes: Infrared, visual, MSX, Picture-in-Picture (Resizable and movable)
