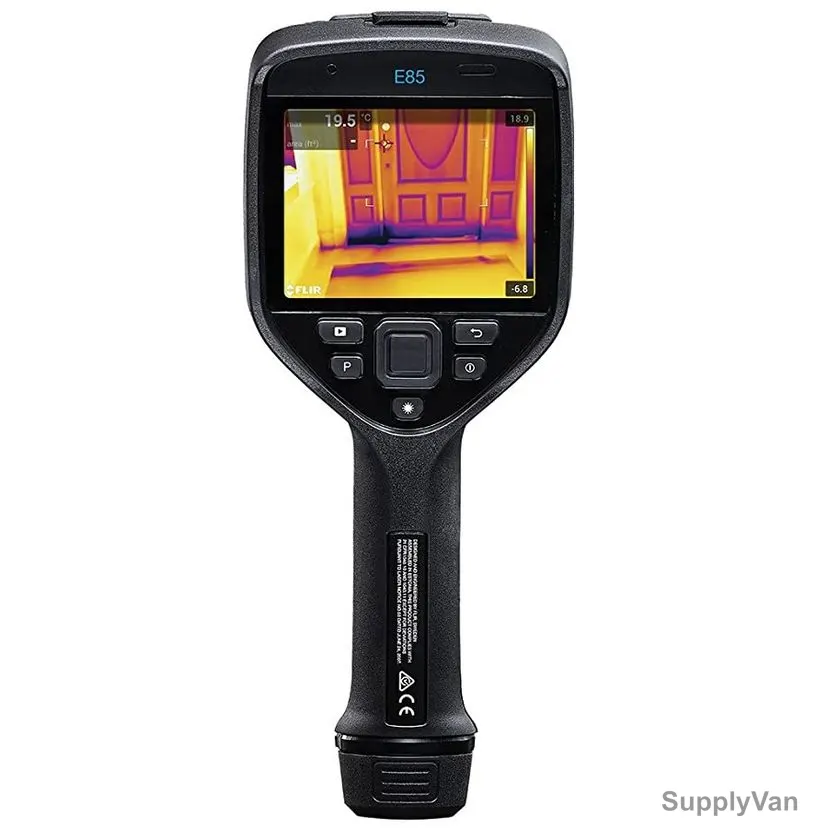

Flir Advanced Thermal Imaging Camera, E85, 384 x 288p, -20 to 1500 Deg.C

Name: Flir Advanced Thermal Imaging Camera, E85, 384 x 288p, -20 to 1500 Deg.C
Brand: Flir
SKU: flir-e85
Price: 35898.00 AED
Availability: PreOrder

SV Code: 834814183172Model No.: E85Article Number: 78502-0201

Li-Ion4 Inch17 mmBlack5MP

AED 35,898.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

High-resolution infrared detectors, up to 464 x 348, for crisp, detailed images
Wide temperature ranges with optional calibrations up to 2732°F (1500°C)
Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes
Detect temperature differences as small as <0.04°C (24° lens) for immediate identification of failing components
Interchangeable lenses offer complete coverage of near and far targets

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	834814183172
Brand	Flir
Category	Thermal Imager
Unit	Piece
Battery Type	Li-Ion
Temperature Range	-20 to 1500 Deg.C
Temp Range	-20 to 650 Deg.C
Accuracy	+/-2.0 percent or +/-2.0 Deg.C
Temp Range F	-4 to 1200 Deg.F
Spectral Range	7.5-14.0 micron
Focus Range	0.50 Mtrs to Infinity
Display Size	4 Inch
Focal Length	17 mm
Colour	Black
Operating Temp	-15 to 50 Deg.C
Operating Temperature	-15 to 50 Deg.C
Storage Temperature	-40 to 70 Deg.C
Special Features	MSX Enhancement, UltraMax(TM) Super Resolution, 4X Zoom, Auto-Orientation, One Shot Laser Distance Meter, Temperature Screening, METERLiNK(R), Compass, GPS, Video Streaming
Display Type	4.0 Inch Touch Screen Color LCD with auto rotation
Storage Temp	-40 to 70 Deg.C
Resolution	5MP
Operating Time	Battery: Approx 2.5 Hrs at 25 Deg.C
Display Resolution	640 x 480p
Aspect Ratio	4:3
Pitch	17 µm
Frame Rate	30 Hz
Field of View	24 x 18 Degree
Maximum Aperture	F/1.3
Minimum Focus Distance	0.5 Mtr
Thermal Sensitivity	<24 Deg at +30 Deg.C (+86 Deg.F)/40 mK
Digital Zoom	1 to 4x Continuous
Emissivity	Adjustable 0.01 to 1.00
Spectral Response	7.5 to 14.0 mum
Detector Resolution	384 x 288p
Detector Type	Uncooled Microbolometer
Storage Media	8GB Removable SD card
Focus Method	Manual and continuous with LDM (laser distance meter)
Removable Memory Card	No
Visual Light Resolution	5.0 MP
Brand Origin (not manufacture)	United States
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

The E85 thermal imager comes packed with the high-performance features you need for fast, accurate detection of hotspots and hidden deficiencies. 384 x 288 true native resolution offers more than 110,000 points of temperature measurement, while the laser distance meter provides data for measuring square area (ft²/ m²) on-screen. It comes with a 17 mm lens, offering a 24° x 18° field of view (FOV).

Features

High-resolution infrared detectors, up to 464 x 348, for crisp, detailed images
Wide temperature ranges with optional calibrations up to 2732°F (1500°C)
Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
Laser-assisted autofocus for precise identification of hot spots, even in cluttered scenes
Detect temperature differences as small as <0.04°C (24° lens) for immediate identification of failing components
Interchangeable lenses offer complete coverage of near and far targets
Lenses auto-calibrate with camera for the most precise temperature readings
MSX image enhancement adds the depth and detail to image
Rapid-response touchscreen with intuitive new user interface
Convenient menu buttons allow for one-handed operation
New folder and naming structure that makes finding images easier
Connect over Wi-Fi to mobile devices or via METER Link to FLIR clamps and multimeters
Spatial Resolution: 1.09 mrad
